Step-by-Step Process of Traditional Chemical Etching

The etching method can be applied in different fields, including microelectronics, art, e.g., jewelry, architecture, zoo design, medical software or anything where we need to create fine, beautiful, detailed patterns and lines. This is a selective procedure of discarding the desired objects from the given substrate, which gives the desired shapes or forms.

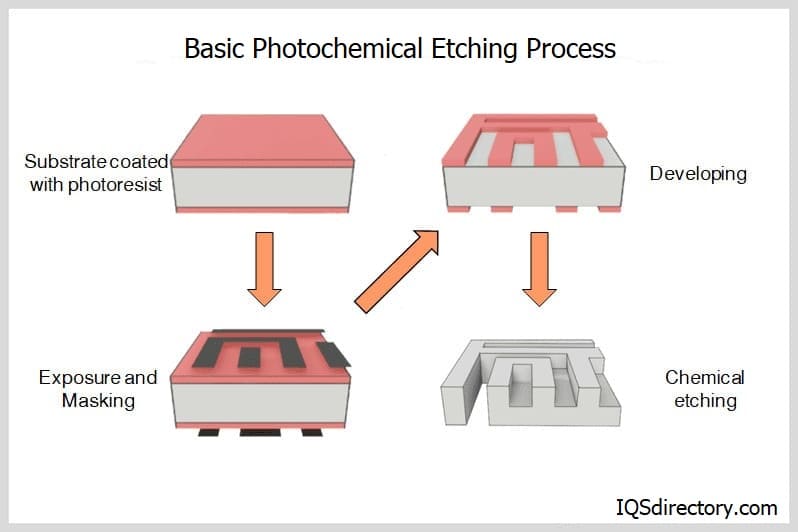

Here is etching process step-by-step

Preparation of the Substrate: The initial step involves choosing and finishing tissue such as muscle or skin. The substrate can be a metal substrate, a glass panel or semiconductor material like a silicon wafer. It has to be carefully cleaned to clear any arrangement or superficial rubbish that could destroy the device etching. During these cleaning procedures, solvents, acids, or other chemicals are employed, and the surface is rinsed off with ionized water to guarantee a pure surface.

Application of the Masking Material: When the substrate is cleaned and dried, an opaque coat is applied, and it will shelter needed places from the etchant material. It can be the array of substances phoersistum, vax or polymer film for applications such as semiconductor production or metal etching, respectively. The masking process is done by uniformly sprinkling the material on the surface through wetting, spin coating and laminating methods.

Exposure and Development: Since we are dealing with a line involving a photoresist, our next step is to pass the patterned substrate through a photomask under ultraviolet light. UV light changes the chemical setup of the exposed areas of the photoresist; due to the type of photoresist used, they have become either more soluble or insoluble. Further the work, the substrate engages a development cycle into the developer solution that increases the unexposed or exposed parts of the photoresist, revealing the substrate where the photoresist is retracted.

Etching: The etching is the subsequent step with this pattern maintained on the substrate. The substrate is then put in the etching solution, where it chemically interacts with the exposed parts of the substrate, creating patterns that assist in eliminating the material from the substrate and producing the desired sculpture or topography. The selection of an etchant depends on the material used for the substrate and the rate at which the etching reaction is desired. Hcl, H2SO4, and HNO3 are frequent metal etchants, while cleaning agents like potassium hydroxide (KOH) are often used for silicone. There are two typical approaches for material deposition: isotropic etching, when the material is removed all over equally in every direction, and anisotropic etching, with a preference for the material to be removed in certain crystallographic planes.

Rinsing and Cleaning: Once the etch is done, the substrate is rinsed with DI water to obliterate the etchant and other chelating residues. Rinsing is critical to avoid spreading contamination across the substrate and stop the reaction that holds etching. In some cases, other cleanliness stages might have to be committed so that the substrate does not have any contaminations or remains that can be a contraindication of the following steps.

Removal of Masking Material: After substrate cleaning, masking material comes off, resulting in a surface-completed pattern. The methods used to do that can depend on the masking material used, which may involve different methods. As an illustration, the photoresist can be stripped with respect to solvents or plasma etching, the same as the waxy or polymeric films, but mechanical peeling or chemical dissolving can also be applied.

Post-Etch Inspection and Quality Control: The etched substrate faces inspection to ensure that the pattern has no defects and the etching quality is satisfactory. For instance, specified methods like optical microscopy, scanning electron microscopy (SEM), or profilometry may be employed to gauge the measure, heterogeneity, and deviation of the etched lines. Any defects with the requirement or variation can be identified initially; therefore, they can be fixed immediately before proceeding to the following processing steps.

Final Thoughts

The etching process is a complicated and very successful series of highly precise steps that necessarily require the operator to be highly accurate and controllable of all these parameters to arrive at the given ‘high-level’ output. All the steps, from preparing the substrate to transferring the pattern, contribute to the point that the engraved components not only have good quality but also working features.
